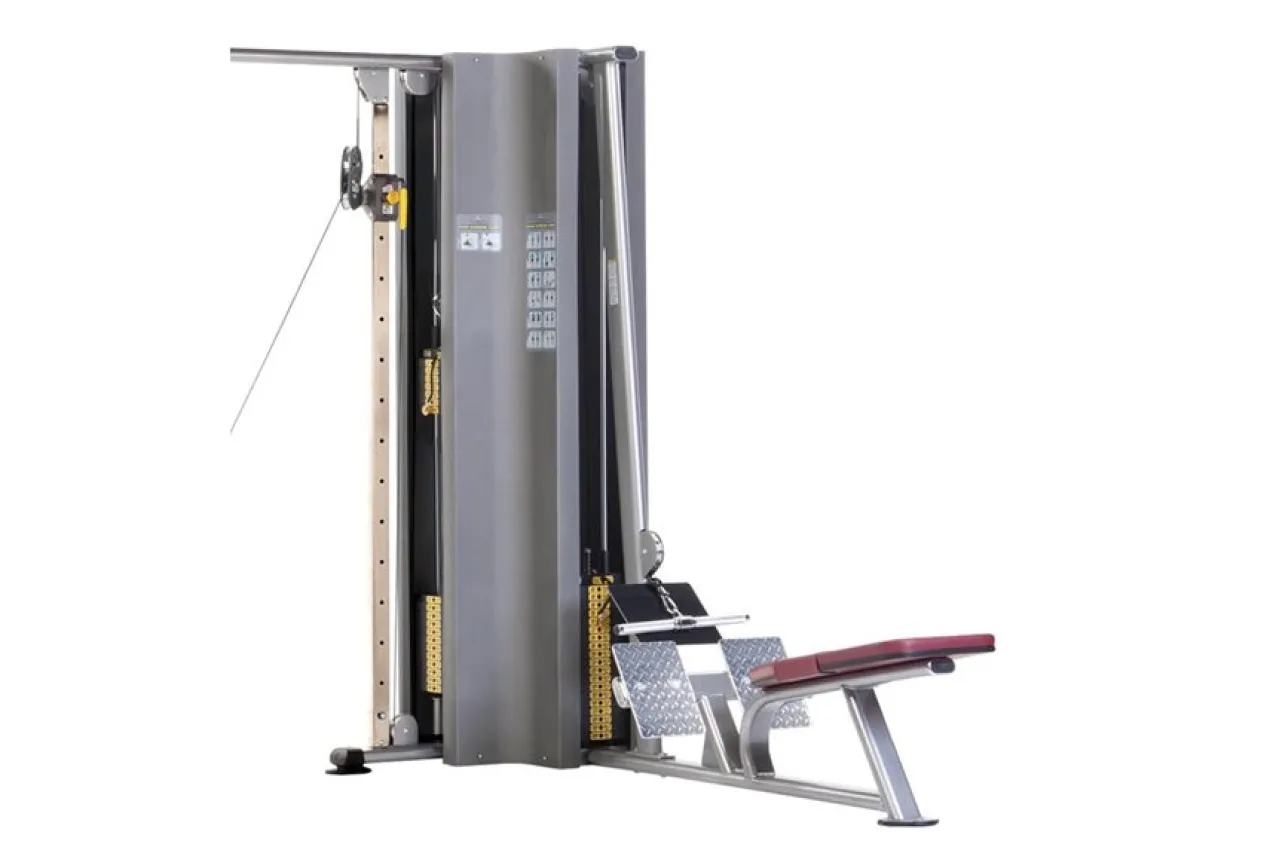

TuffStuff Proformance Plus 5-Station Jungle Gym (PPMS-5000)
$140.89
The TuffStuff Proformance Plus 5-Station Jungle Gym (PPMS-5000) is a customizable modular system that offers you the flexibility to choose the exercise stations and positioning that best suits your facility. Full commercial quality, the jungle gym is engineered and manufactured at TuffStuff’s headquarters in Chino, California, USA. The finish colors, upholstery and embroidered wear covers on TuffStuff’s 5-Station Jungle Gym may be personalized, add your logo to further enhance your company’s brand. Backed by an extensive warranty, the Proformance Plus 5-Station Jungle Gym is ideal for outfitting any commercial weight room, recreation center, apartment complex or professional gym.
Features:
- Made in the USA
- Customizable modular system: choose your exercise stations and positioning

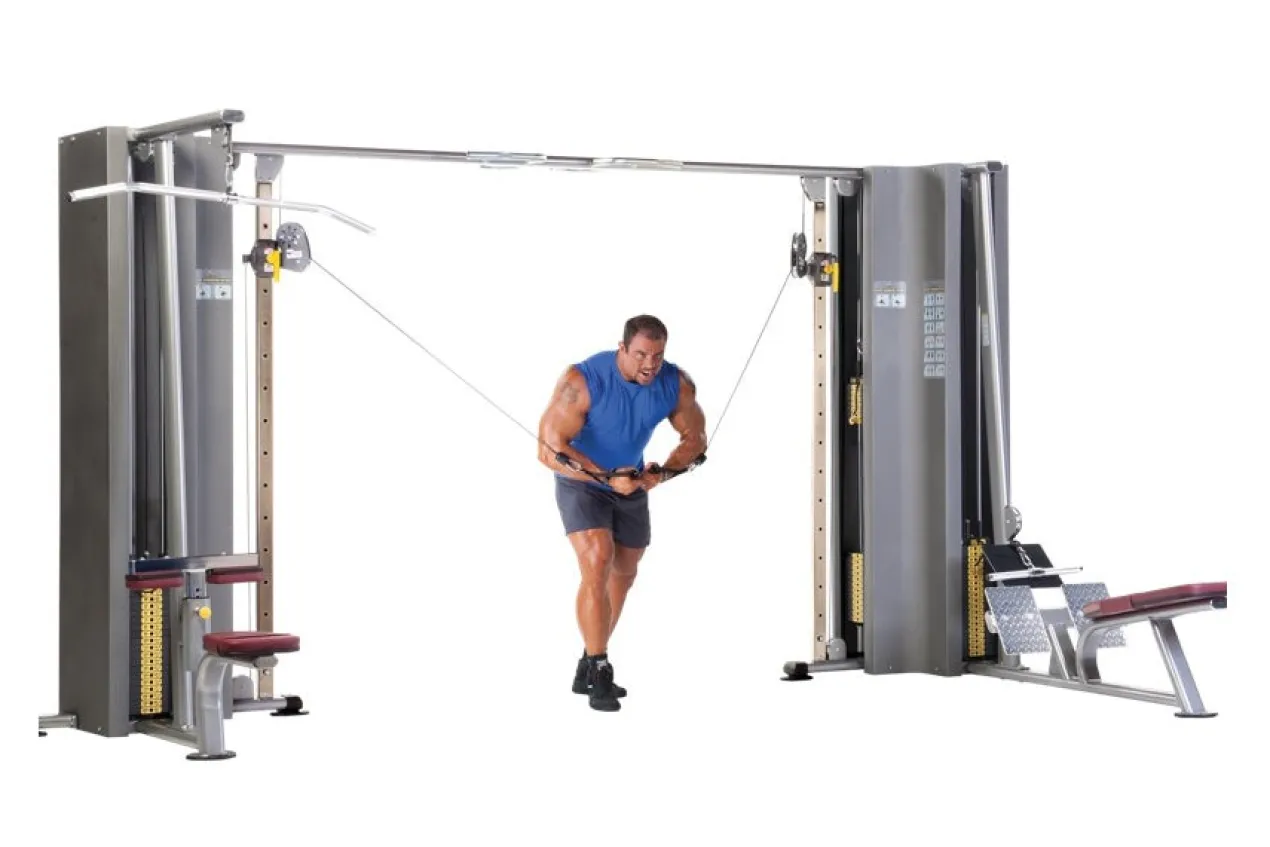

- Includes five exercise stations (shown with Lat Pulldown, Low Row, Pull-Up Station, and (2) Adjustable High/Low Stations)
- Four 200 lbs. steel weight stacks. (Optional: 300 lbs. steel weight stacks available)
- Solid aluminum pulleys with sealed bearings for smooth, friction-free movement
- Full length protective steel weight shrouds with integrated exercise placards
- Steel plate corner braces reinforce the main frame for maximum structural stability
- Swivel handles provide multi-directional, free and natural movements
- EXERFLEX PRO® high performance fitness cable rated at 4200 lbs. tensile strength
- Full Commercial Warranty
PERFORMANCE PLUS CUSTOMIZATION
For all Performance Plus products, the finish colors, upholstery and embroidered wear covers may be personalized (add your logo) to further enhance your company name.
Frame Colors:
Note: Finishes as shown are close representations of the actual powder coat colors, and MUST NOT be used for an exact match of the color. Always request actual color samples from your dealer.
Upholstery Colors:
Note: Color samples as shown are close representations of the actual vinyl and finish colors, and MUST NOT be used for an exact match of the color. Always request actual vinyl samples from your local Dealer Sales Representative.
SPECIFICATIONS
|
Weight
|
1720 lbs
|
|
Dimensions
|
100 × 187 × 95 in
|
|
Frame
|
Main frame – 2×4” 11-gauge 120 wall oval tubular steel with a combination of 2” round and other 11-gauge tubular steel. All welded construction conforming with all Structural Welding Code-Steel Standards and Specifications.
|
|
Finish
|
Powder coat finish baked at 400ºF and carefully monitored to ensure complete curing. Custom two tone finish offers choice of six primary colors combined with Charcoal Texture accents. Custom colors available, please inquire with your sales representative.
|
|
Upholstery
|
Premium Bolta Sport vinyl with PreFixx, formulated to resist bacteria, stains, mildew, oil and UV stabilized pigments. Meets most flammability test requirements. All upholsteries are double-stitched with “hidden” borders. Bolta Sport color swatches are available upon request. Sixteen standard colors. Custom colors are available – please inquire with your sales representative.
|
|
Padding
|
High density 1” thick 3 lbs. rebond urethane foam glued to 1” industrial plywood backing, trimmed and formed to exact fit.
|
|
Cables & Belts
|
Cable driven units – USA-Made/Certified 3/16” and 1/4” EXERFLEX PRO® high performance fitness cable rated at 4200 lbs. tensile strength. Belt driven units: reinforced Kevlar® belts, rated at 4400 lbs. tensile strength.
|
|
Weight Stack
|
Black painted solid steel weight plates with self aligning low friction sleeves. Four (4) 200 lbs. steel weight stacks. (Optional: 300 lbs. steel weight stacks available)
|
|
Other Specs
|
ADJUSTMENT PINS: 1/2” and 5/8” push-pull spring loaded solid steel adjustment pins with ultimate load of 9040 lbs. and 46042 psi sheer strength. BEARINGS: 1” solid stainless steel pivot axles with non-friction 2” sealed bearings (load rating of 2400 lbs.) internally encased on primary pivots, and oil-impregnated bronze bushings on all secondary pivots. PULLEYS: Combination wide grove fiberglass reinforced nylon pulleys on belt-driven system and solid aluminum pulleys on cable units. CAMS: Charcoal Texture powder coat solid aluminum variable resistance cam designed specifically for each machine. FASTENERS: All frame bolts and nuts are 3/8” and 1/2” blue zinc plated grade 8 and up. Meets ANSI specifications. CUSTOM STABILIZER FEET: Heavy-duty molded rubber base feet insure stability, prevent equipment movement, and may be bolted to the floor. SELECTOR WEIGHT PINS: Weight pins are solid steel, magnetic with ball-end to ensure a tight connection and secure fit. Coiled lanyard helps prevent pin removal and loss.
|
|
Commercial Warranty
|
10 YEARS: Frames, welds, cams and weight plates. 5 YEARS: Pivot bearings, pulleys, bushings, gas-shocks, and guide rods. 1 YEAR: Belts, linear bearings and pull-pin components. 6 MONTHS: Upholstery, cables, finish and rubber grips.
|
